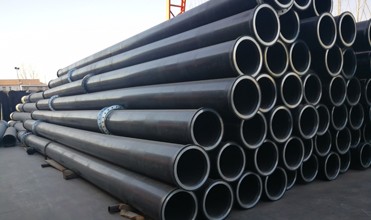

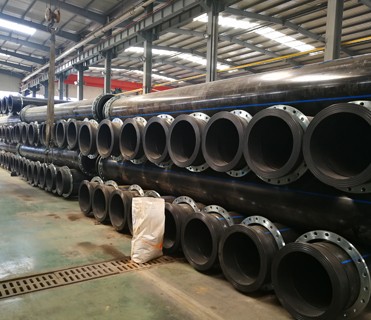

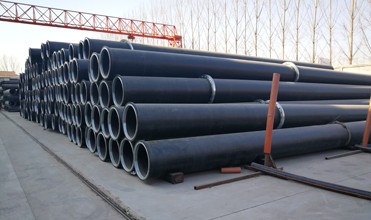

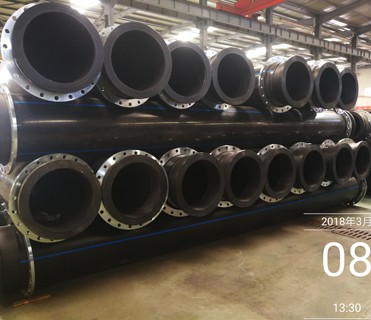

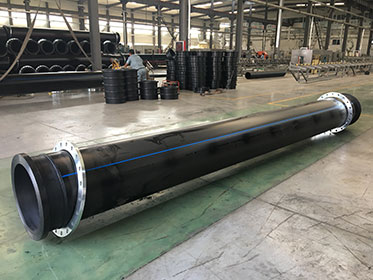

High toughness HDPE pipe for sand dredging
Product Description
Product Description
HDPE pipe IntroductionHDPE pipe (High-density polyethylene pipe) is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.
Specifications of HDPE Dredge Pipe
Application
Main Features:1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): =20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.
Certifications
Advantages
Corrosion Resistant
Lower Installation Costs
Recycled and Environment-friendly
Longevity: more than 50 years under proper use
Our Company SHANDONG E-TOUCH SHIPPING ENGINEERING CO., LTD, Weifang City , Shandong ,China have technical expertise in maritime activities in respect of Cutter Suction Dredger Designing and Manufacturing ,Small Craft Building,Trading, Barge operation both Inland River and Sea, Ocean Transport, Dredging ,Coastal Ship, building of river sea ships, Inland ships, river ship, Aluminium boat, Fibre Glass Boat,Solar Boat,Tourist Vessel, Cruise Vessel , Floating Dinner Ships, Cruise Ship, Trading in Marine Equipment, Engines, Pumps,Valves,Ship parts, Navigational Equipment, Communication Equipment, Marine Generators, CLASS Approved Spares and parts of Ocean Going Ships,etc.
Packing & Delivery
Related Products
10 inch cutter suction dredger
12 inch cutter suction dredger
14 inch cutter suction dredger
Contact Us
DellaShandong E-touch Shipping Engineering CO.,LTD
Add:Weifang city,Shandong province,China
Tel:+86-18663638531
Email: dellazheng@e-touch.cc FAQ Contact us if you need more details on 100% Raw Material Hdpe Pipes Supplying For Long Using Life. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Stable Performanced HDPE Pipe With Hard Flange、Suitable For Dredgers Discharging Pe Pipe For Sale. If these products fail to match your need, please contact us and we would like to provide relevant information.
HDPE pipe IntroductionHDPE pipe (High-density polyethylene pipe) is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.Specifications of HDPE Dredge Pipe
HDPE class | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | ||||
Nominal pressure | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | ||||
Nominal outer diameter(mm) | Thickness | ||||||||
DN32 | - | - | - | - | 3.0 | ||||
DN40 | - | - | - | - | 3.7 | ||||
DN50 | - | - | - | - | 4.6 | ||||
DN63 | - | - | - | 4.7 | 5.8 | ||||
DN75 | - | - | 4.5 | 5.6 | 6.8 | ||||
DN90 | - | 4.3 | 5.4 | 6.7 | 8.2 | ||||
DN110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | ||||
DN125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | ||||
DN140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | ||||
DN160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | ||||
DN180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||||
DN200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||||
DN225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||||
DN250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | ||||
DN280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | ||||
DN315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | ||||
DN355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | ||||
DN400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | ||||
DN450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | ||||
DN500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | ||||
Main Features:1.Specific Gravity, g/cm3, 20(C): 0.941-0.9652.Longitudinal Reversion, % (110(C)): =20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.
Certifications
Advantages Corrosion Resistant
Lower Installation Costs
Recycled and Environment-friendly
Longevity: more than 50 years under proper use
Our Company SHANDONG E-TOUCH SHIPPING ENGINEERING CO., LTD, Weifang City , Shandong ,China have technical expertise in maritime activities in respect of Cutter Suction Dredger Designing and Manufacturing ,Small Craft Building,Trading, Barge operation both Inland River and Sea, Ocean Transport, Dredging ,Coastal Ship, building of river sea ships, Inland ships, river ship, Aluminium boat, Fibre Glass Boat,Solar Boat,Tourist Vessel, Cruise Vessel , Floating Dinner Ships, Cruise Ship, Trading in Marine Equipment, Engines, Pumps,Valves,Ship parts, Navigational Equipment, Communication Equipment, Marine Generators, CLASS Approved Spares and parts of Ocean Going Ships,etc.
Workshop | ||||||
Packing & Delivery Related Products 10 inch cutter suction dredger12 inch cutter suction dredger
14 inch cutter suction dredger
Contact Us DellaShandong E-touch Shipping Engineering CO.,LTD Add:Weifang city,Shandong province,China
Tel:+86-18663638531
Email: dellazheng@e-touch.cc FAQ Contact us if you need more details on 100% Raw Material Hdpe Pipes Supplying For Long Using Life. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Stable Performanced HDPE Pipe With Hard Flange、Suitable For Dredgers Discharging Pe Pipe For Sale. If these products fail to match your need, please contact us and we would like to provide relevant information.
